Discountinued: FS-3 DC Flasher

FS-3 DC Flasher product has been discontinued, and has been replaced with the new FS-4 DC Flasher. Please click the following link to see the new FS-4 DC Flasher product: https://elteccorp.com/products/traffic-signal-controllers/fs-4-dc-flasher/

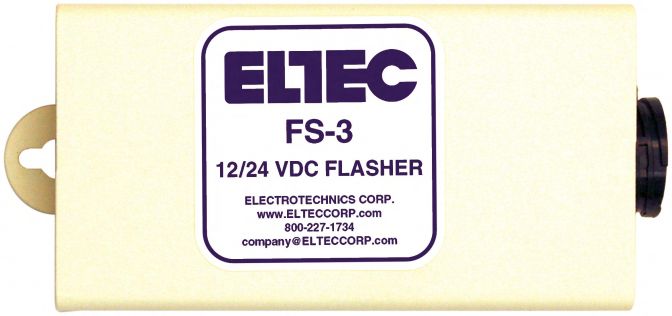

ELTEC’s new FS-3 DC flasher, which is generally mounted on the cabinet back panel for traffic warning signals, is a replacement for both of our older models and combines all flash functions.

It uses solid-state circuitry and an integrated microprocessor for multiple programming options with minimal power consumption. It is primarily used in solar powered flashing beacon warning systems but can also be integrated into AC systems.

It also has a night run only feature, as well as automatic night dimming.



download Data sheet GET A QUOTE
Description
Specs
Additional Information

Description

FS-3 DC Flasher product has been discontinued, and has been replaced with the new FS-4 DC Flasher. Please click the following link to see the new FS-4 DC Flasher product: https://elteccorp.com/products/traffic-signal-controllers/fs-4-dc-flasher/



ELTEC’s new FS-3 DC flasher (typically mounted on the cabinet back panel for traffic warning signals), replaces both the FS-2A and FS-2B models, combining all flash functions: wig-wag and every RRFB flash patterns.

The FS-3 is interchangeable (plug & play) since the dimensions and wiring are the same as the other models.

It uses solid state circuitry and an integrated microprocessor for multiple programming options with minimal power consumption. Primarily used in solar powered flashing beacon warning systems, it is used where there is a ready source of 11.4VDC-30VDC, but can also be integrated into AC systems with an added power supply.

In conjunction with a photocell, a night run only feature is available—dusk to dawn. Another user choice is the optional automatic night dimming triggered when the ambient light reaches the FAA (Federal Aviation Administration) definition of nighttime/daylight.

A 25 month warranty is standard on all ELTEC products. For more information download our DATA SHEET. For a price quote, click-on contact us today.

Mounted Solar Powered Flashing Beacon Traffic Cabinet
FS-3 Mounted Inside Solar Powered Flashing Beacon Traffic Cabinet

Specs

Dimensions

1.64”H x 5 ½ ”L x 2.625” W
Input Voltage Range

11.4V DC to 30V DC
Maximum Load Power

40 Watts per Output Circuit
Temperatures Range

-34° C to + 74° C
Flash Rate

75 *FPM for RRFB patterns; 55 FPM for Wig-Wag patterns
Flash Circuits

1 or 2 circuits
Night Dimming

Automatic via photocell (may be disabled)
Night Run Only

Enabled/disabled via Internal Jumper (photocell required)

Additional Information

STANDARD FEATURES

  • Multipurpose Programming
  • Interchangeable with FS-2A and FS-2B Models
    • Same Dimensions
    • Same Wiring Pin-Out: flasher harness remains the same

  • Multiple Flash Patterns and Rates
    • Round Beacons: Wig-Wag
      • Duty Cycle of 40% ON/ 60% OFF (1 LED)
      • Duty Cycle of 50% ON/OFF (2 LEDs)

    • Rectangular Rapid Flashing Beacons (RRFB)
      • Wig-Wag + Simultaneous (WW+W)
      • 2/4-1

  • Programming Options: with added photocell
    • Night Run Only Feature
    • Optional Night Dimming

  • Provides for 1 or 2 Circuit Flashing
  • Can be used in AC Flashing Beacon Systems with Added Power Supply
  • Low Power Consumption



FS-3 MANUAL
